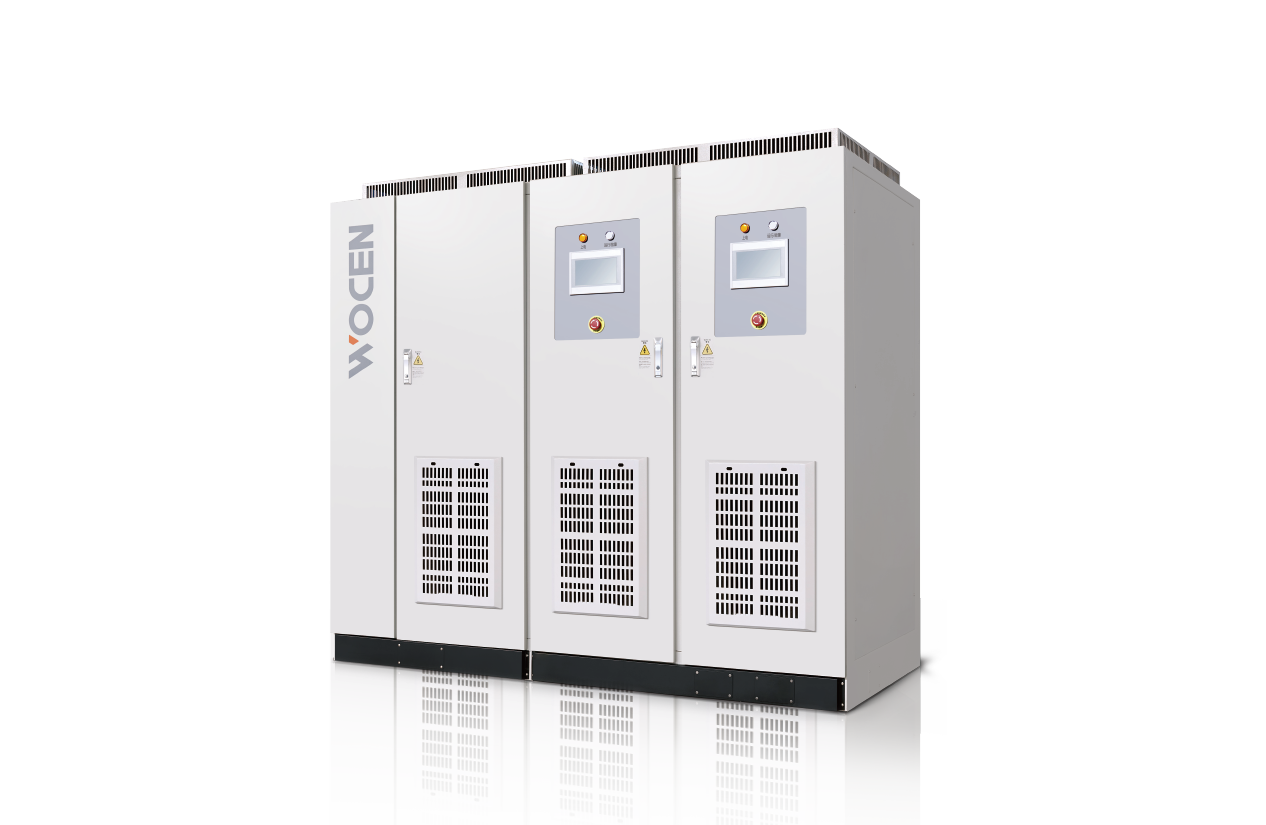

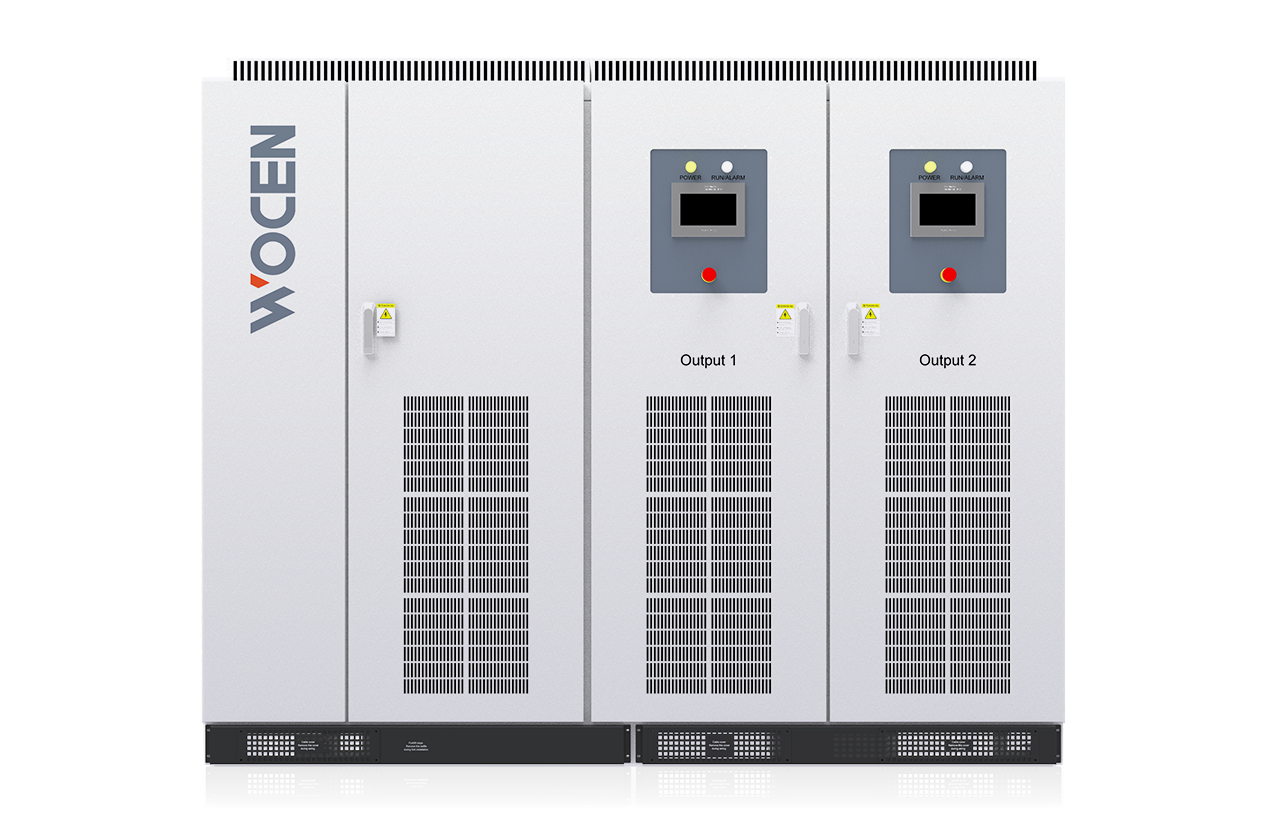

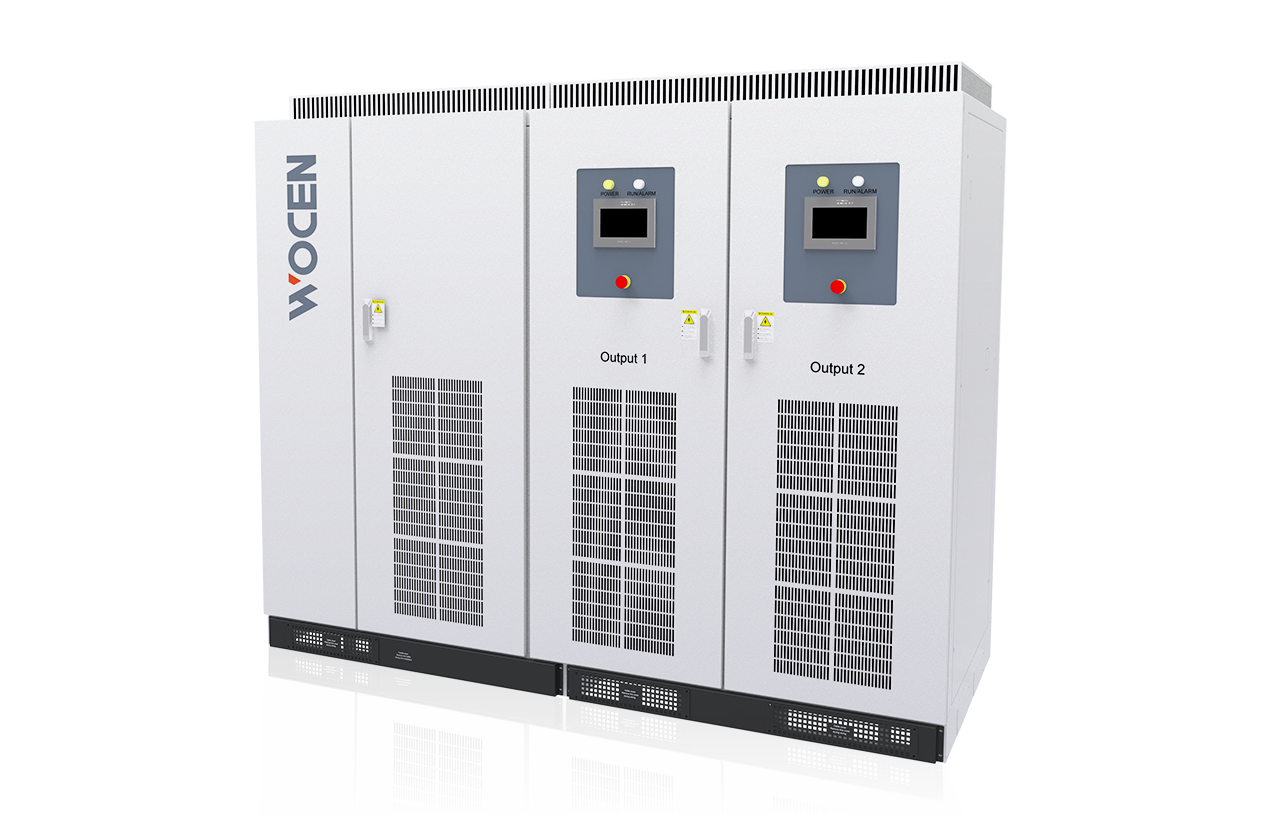

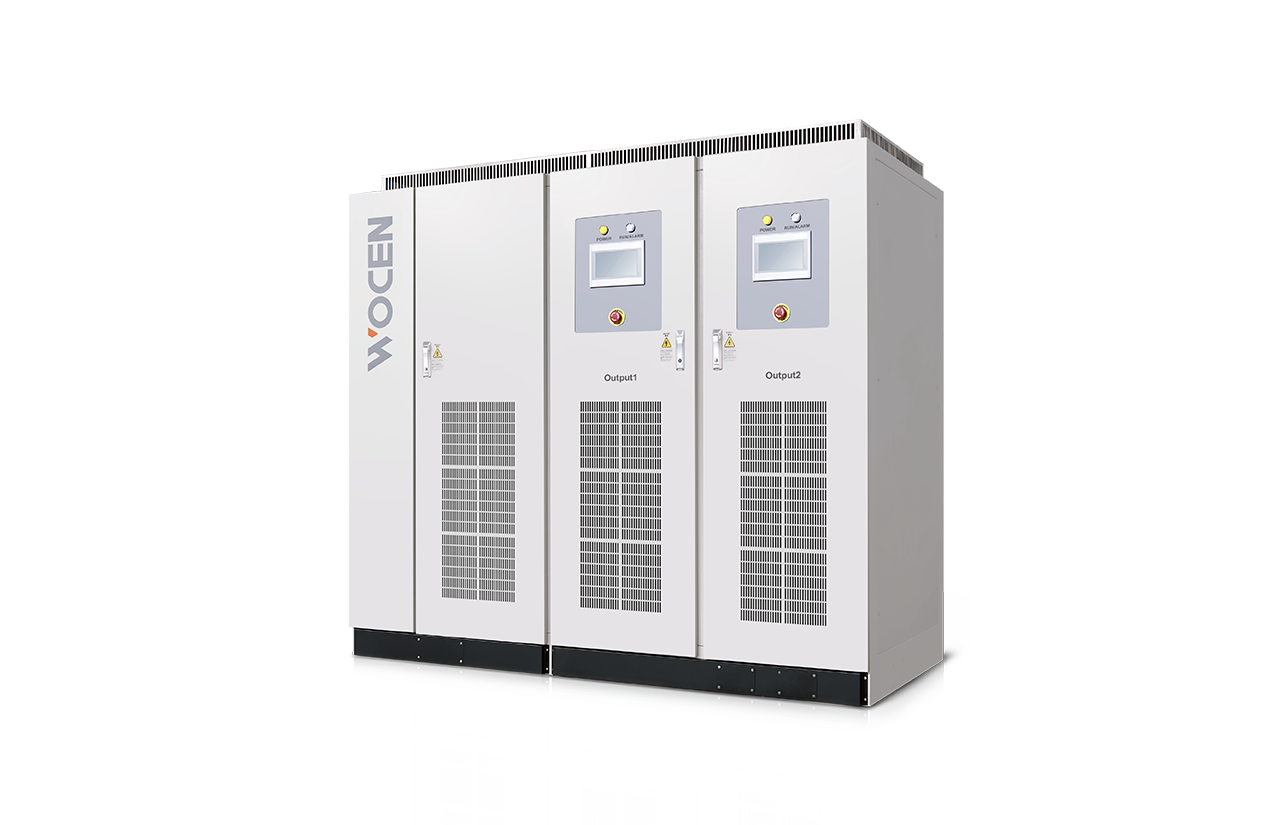

Bidirectional Dual-Channel DC Test Power Supply
EVWBT Series

voltage 24~1200V, current 0~1200A (peak 1560A), power 0~600kW (peak 780kW)


EVWBT series Bidirectional Dual- Channel DC Test Power Supply is characterized by a bidirectional flow of energy, which can provide electrical energy for the load and feed the electrical energy back to the electrical grid without pollution, saving the power cost for the user. With two independent DC outputs, the two outputs' voltage, current, and other parameters can be set separately. It applies to the energy feedback- type test bench and can adapt to two motor controllers with different voltage classes.

Return to List
Application Area
  • Hybrid vehicle generator testing
  • DCDC testing for electric vehicles
  • Electric vehicle whole vehicle testing
  • Electric vehicle powertrain testing
  • Electric vehicle motor testing

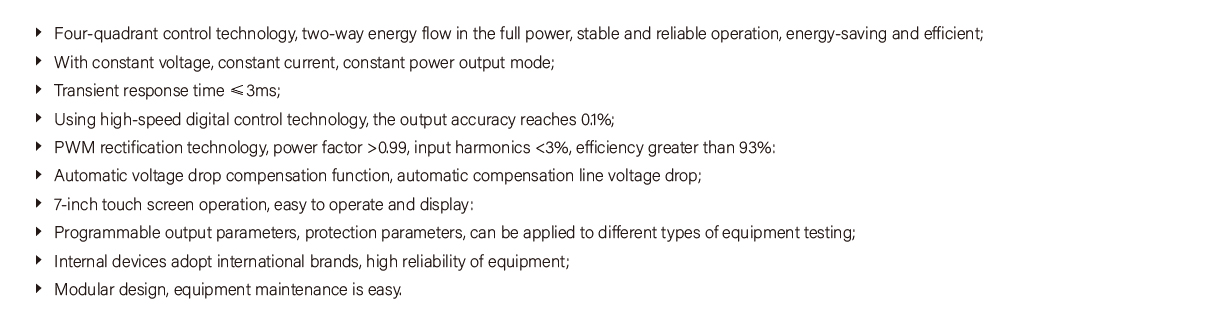

Product Features
  • The four- quadrant control technology is adopted to realize bidirectional energy flow in full power, stable and reliable operation, energy conservation, and high efficiency;
  • Various output modes of constant voltage, constant current, and constant power;
  • Transient response time ≤ 3mS;
  • High- speed digital control technology is adopted, with output accuracy up to 0.1%;
  • PWM rectification technology is adopted, power factor>0.99, input harmonic<3% and efficiency>93%;
  • With automatic voltage drop compensation function, automatically compensates for line voltage drop;
  • The 7- inch touch screen is used for convenient operation and display;
  • The output and protection parameters are programmable and can be used for different equipment tests;
  • Internal components are of international brands such as LEM and Infineon, with high equipment reliability;

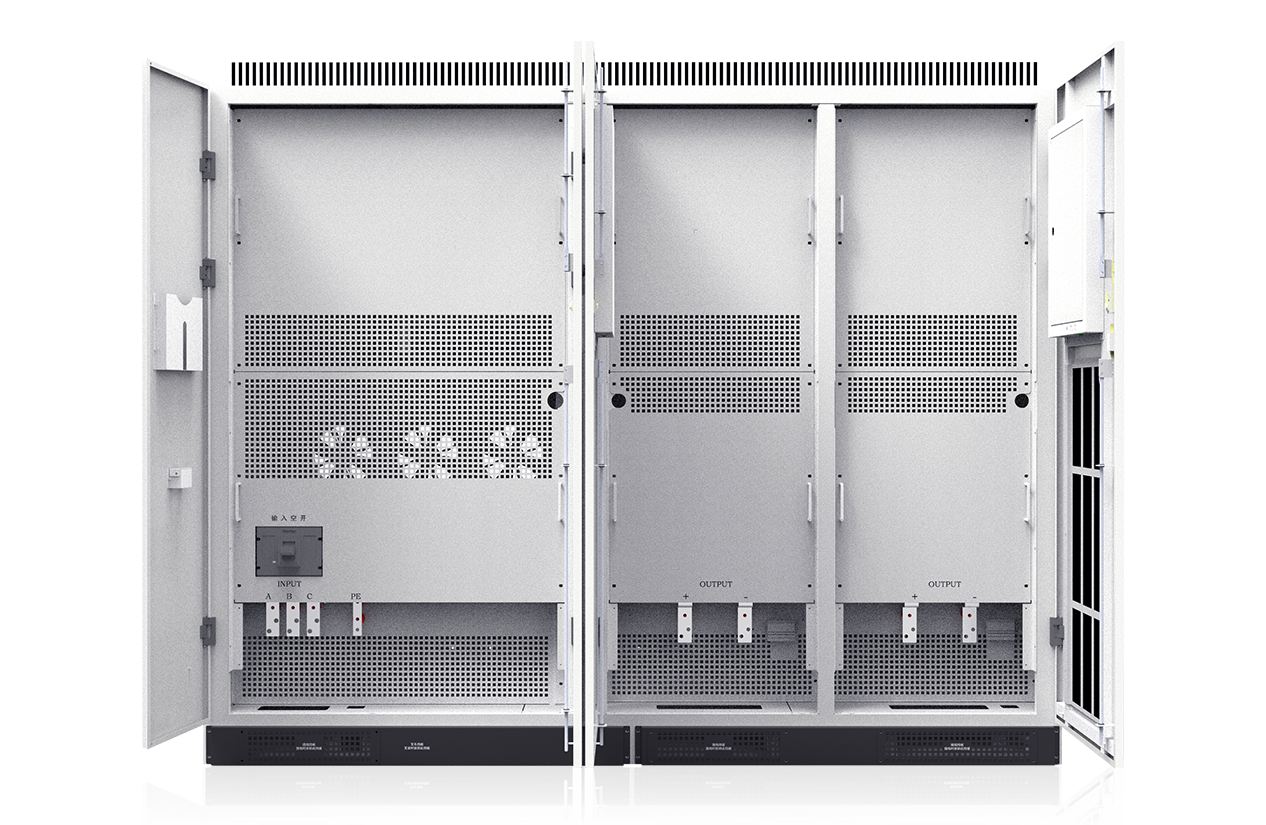

  • The modular design is adopted, and the later maintenance of the equipment is simple.

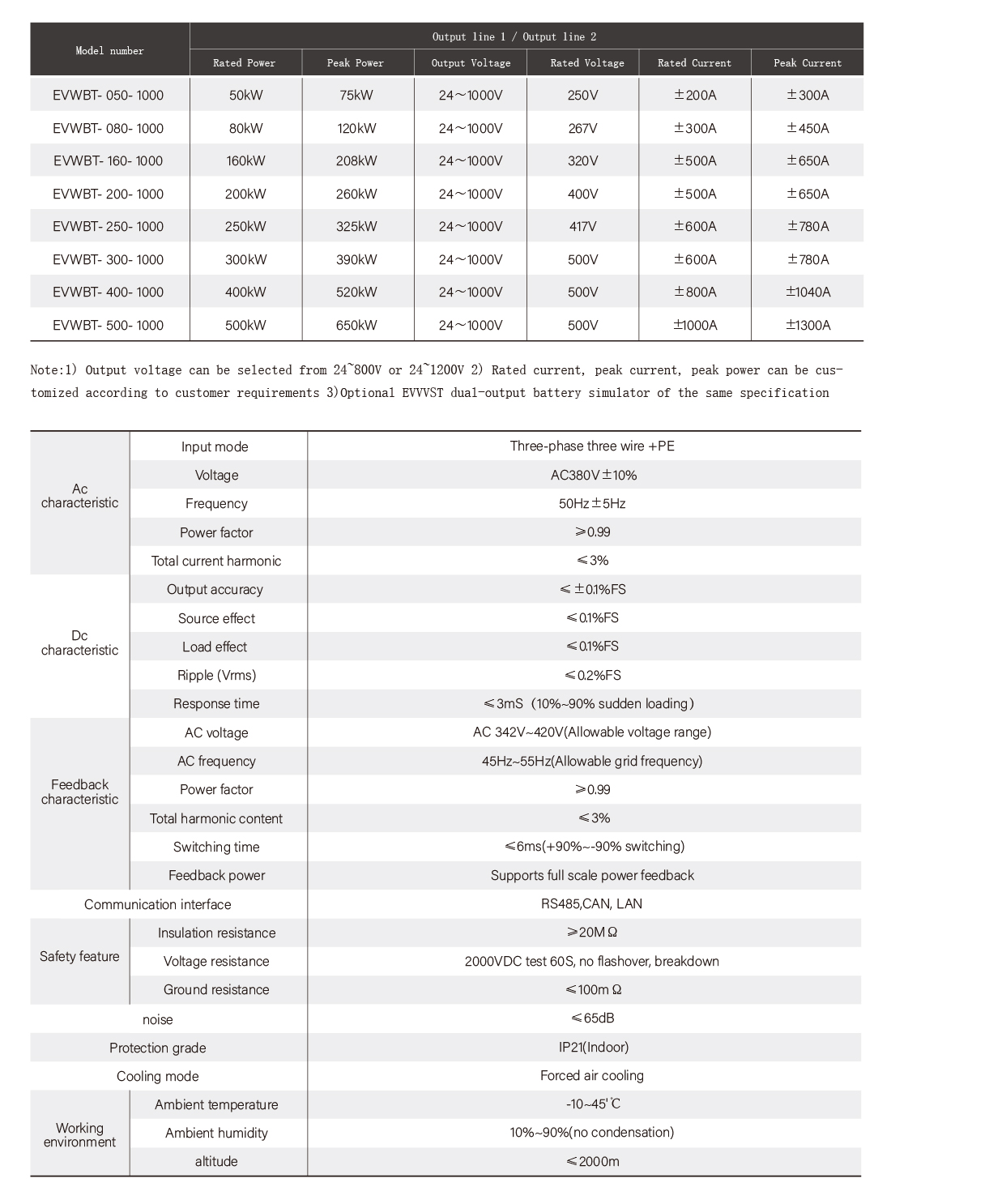

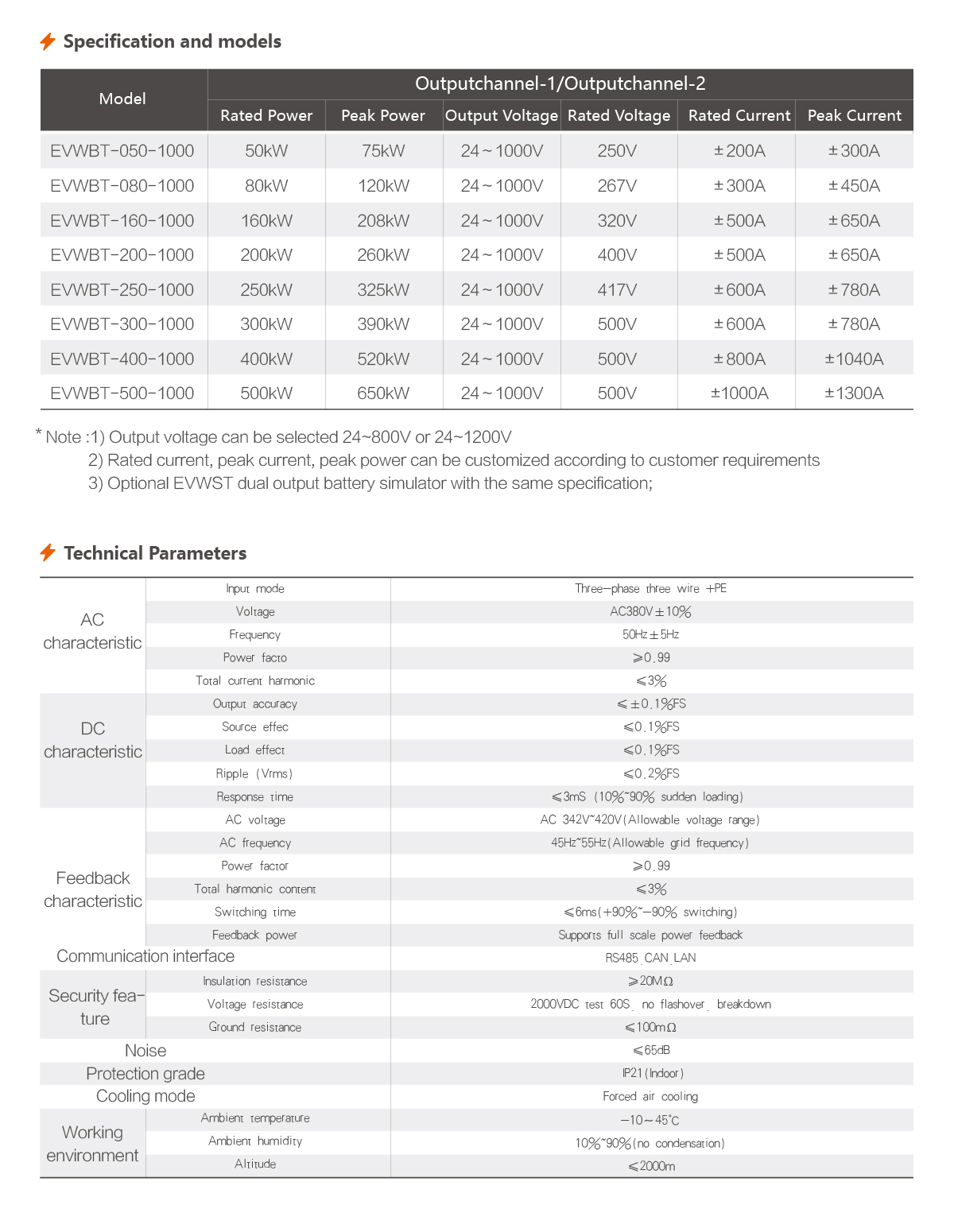

Technical parameter table
