DC Regulated Power Supply

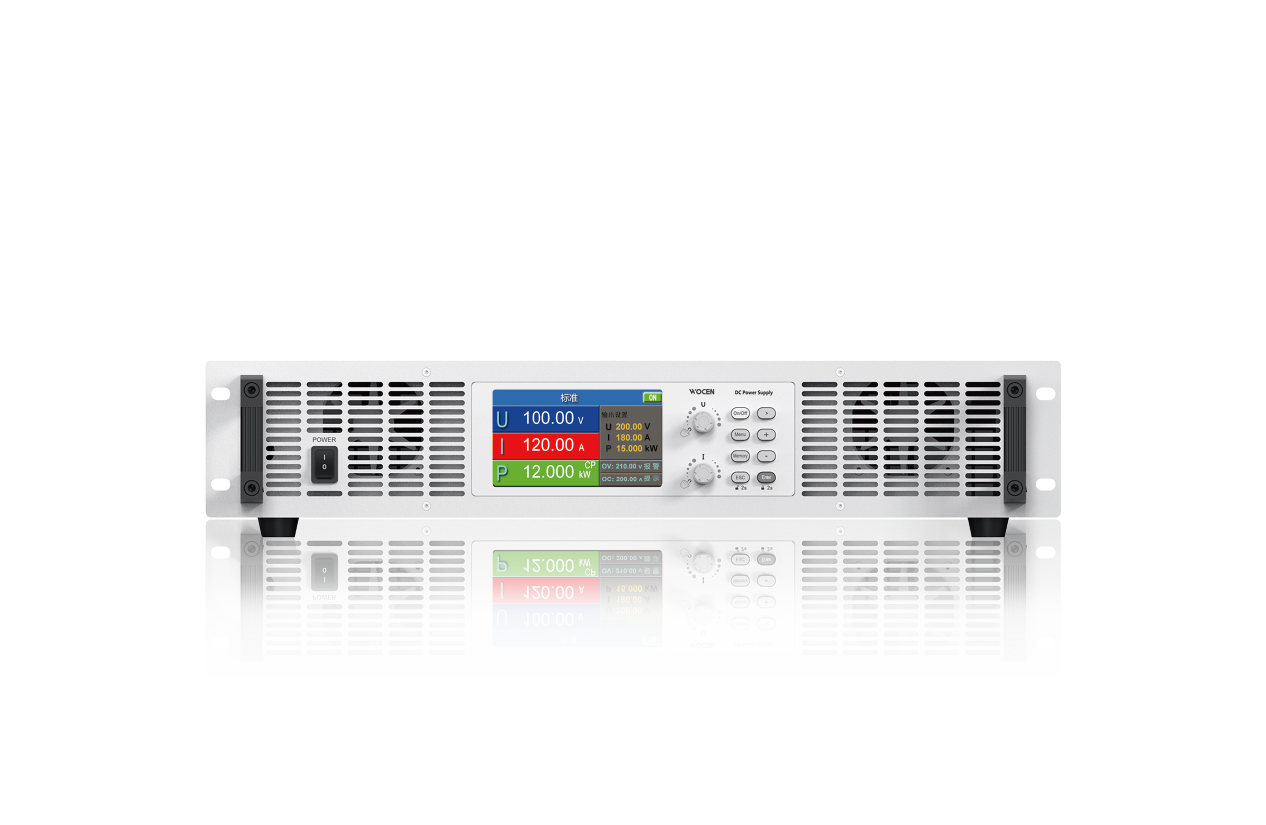

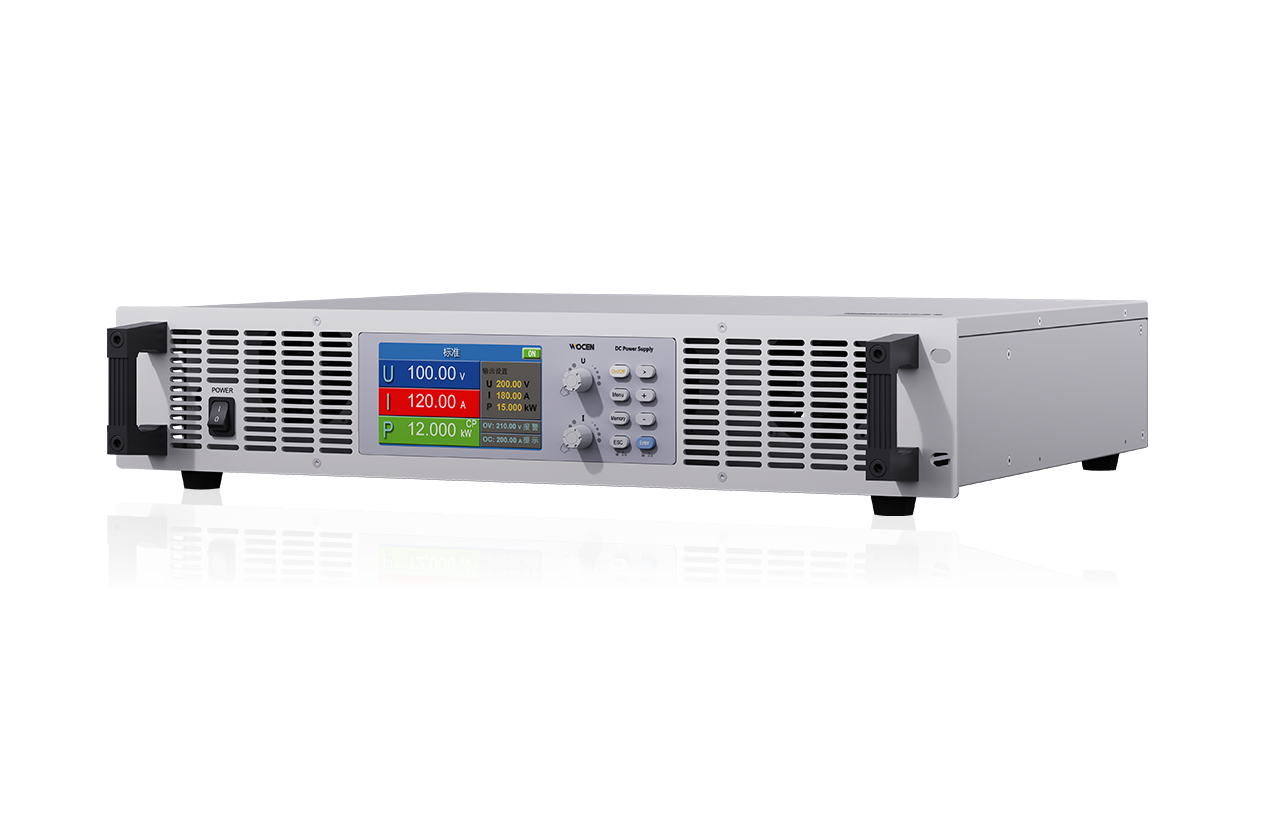

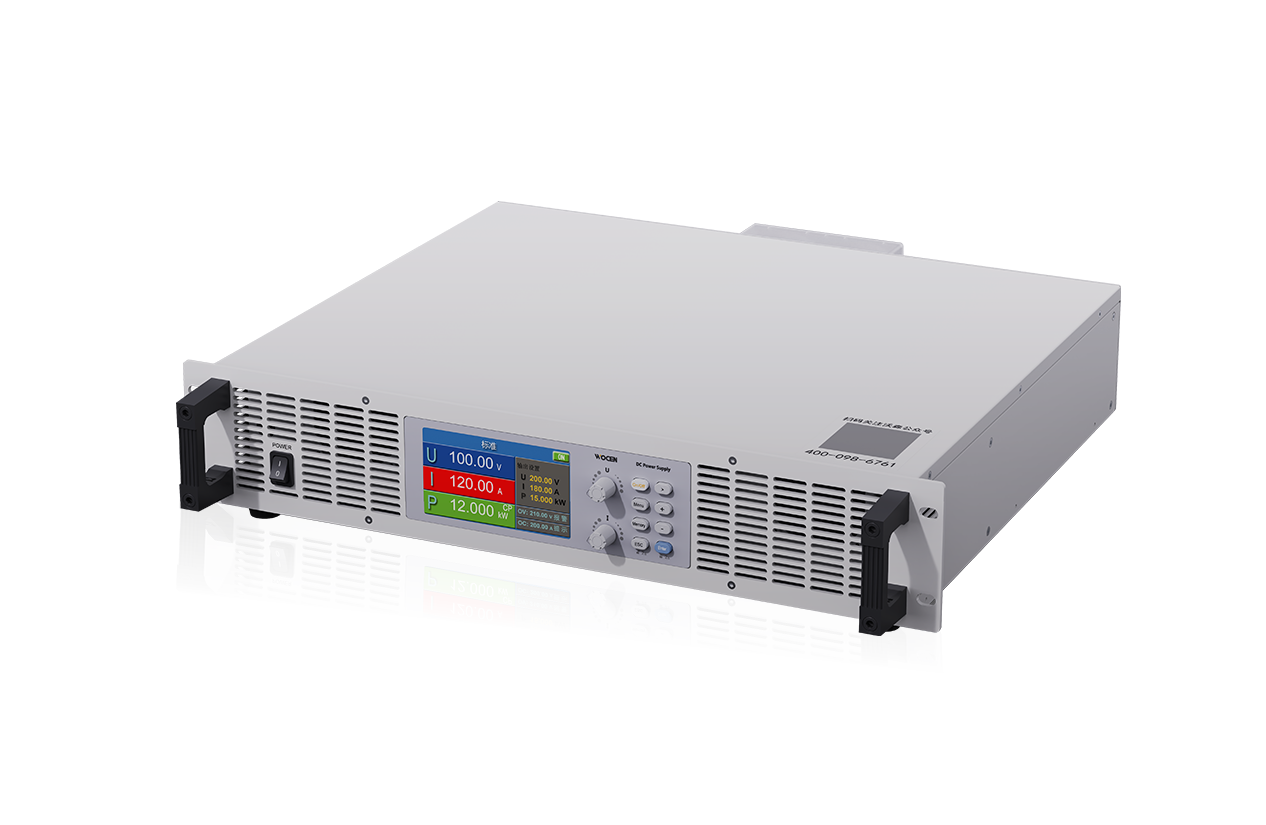

GP (1~3kW) Series

GP (1~3kW) series DC regulated power supply is specially developed for various DC test systems, test benches and laboratories, scientific research units, and production enterprises.It is used to replace batteries for testing of electric tools, motors, automotive electronics, LED, system power supply and other fields.It has the characteristics of good output performance, small size, light weight, convenient operation and reliable operation.It is an advanced multi-purpose DC power supply.

Return to List

Application Area

Electric vehicle electronic control testing
Home Appliances
Electric Motors
LED
Scientific ResearchInstitutions
Motors

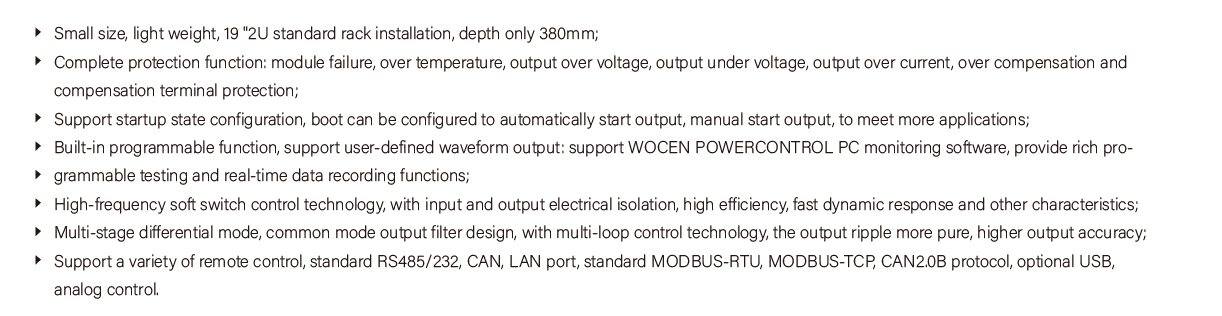

Product Features

Small size, lightweight, 19"2U standard rack installation, depth only 380mm;
Complete protection functions: module failure, overtemperature, output overvoltage, output undervoltage, output overcurrent, overcompensation, and reverse protection of compensation terminal;
Supporting startup status configuration. Startup can be configured as automatic startup output and manual startup
Output to meet more application occasions;
Built- in programmable function supporting user- defined waveform output; Supporting WOCEN POWER CONTROL upper computer monitoring software, providing abundant programmable test, real- time data record and other functions;
High- frequency soft switch control technology is featured by electrical isolation of input and output, high efficiency of
the whole machine and fast dynamic response;
Multi- level differential mode and common mode output filtering design, matched with multi- loop control technology,
with cleaner output ripple and higher output accuracy;

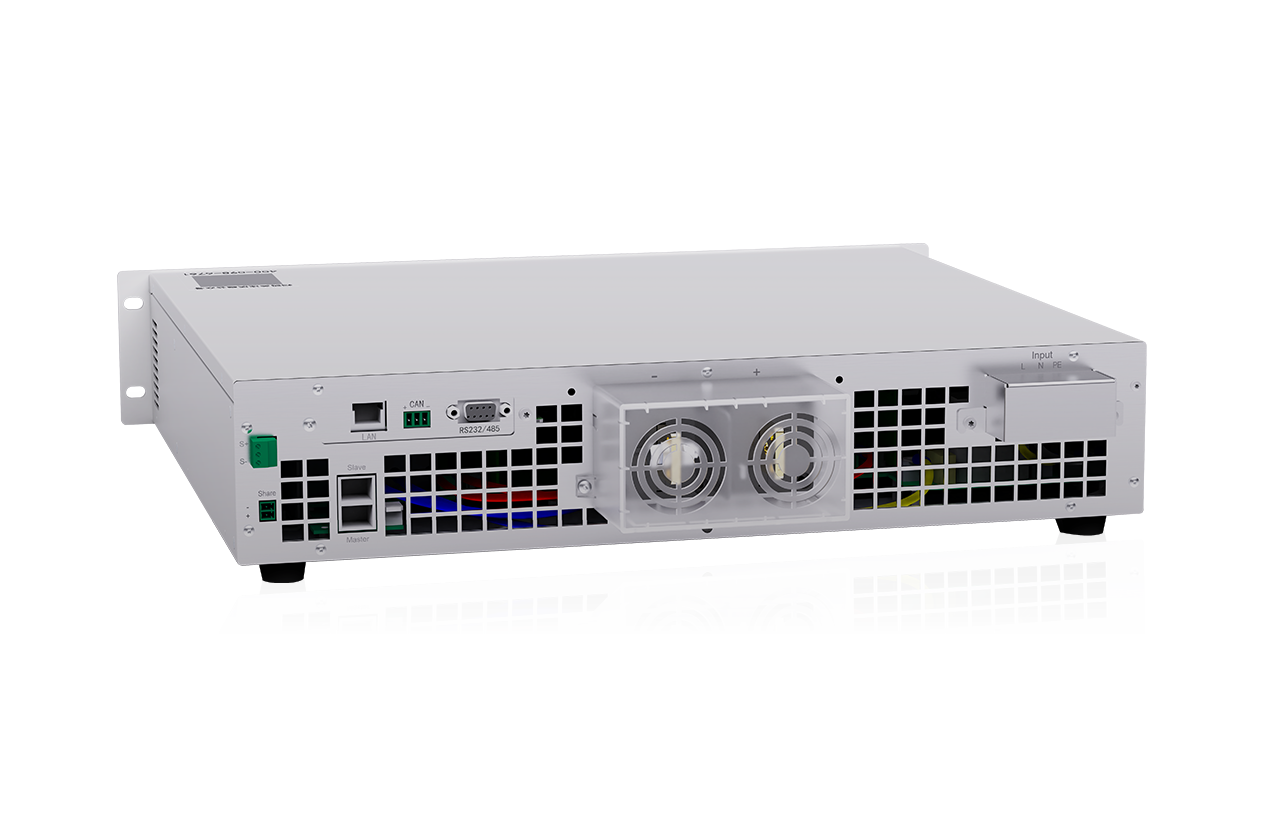

Support multiple remote control, standard configuration RS485/232, CAN, LAN port, standard configuration MODBUS- RTU, MODBUS- TCP, CAN2.0B protocol, optional USB, and analog control.

Product Functions

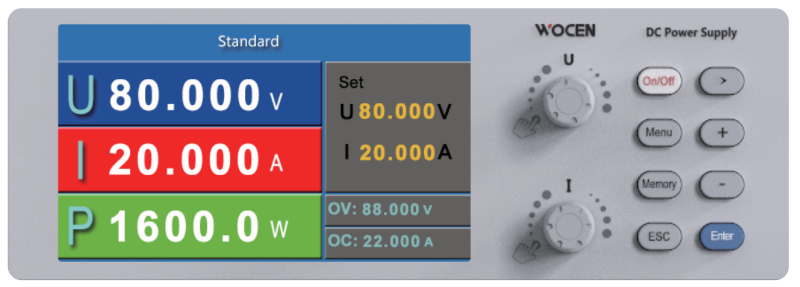

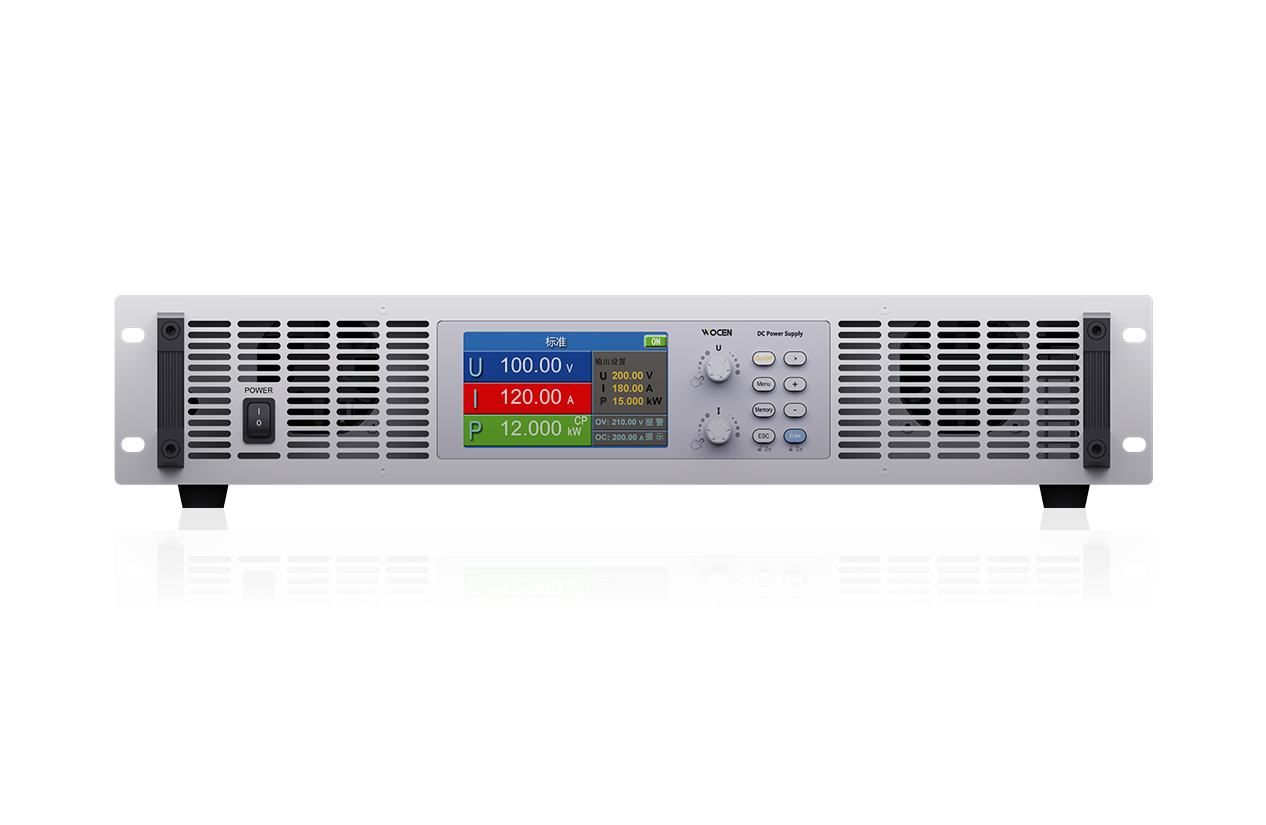

LCD Display with Knob Operation

The 4.3-Inch LCD screen is used for display, and the power output parameters are adjusted through the knob and key. The human-machine interface is convenient, and the operability is good.

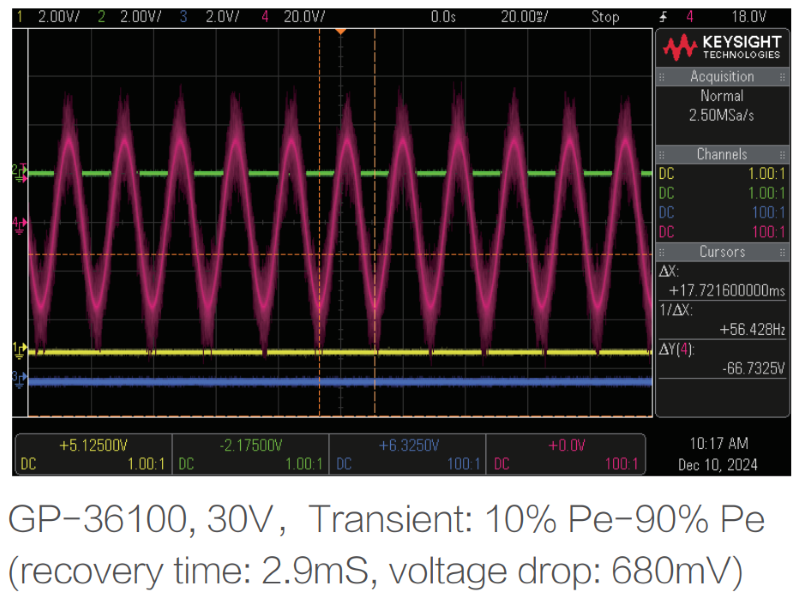

Fast Dynamic Response

The GP（1-3kW） series DC- regulated test power supply output adopts multi- loop waveform correction with good transient characteristics. 10% - 90%, 0 - 50% load switching with the transient response time <5mS, voltage variation <5% FS (FS is the rated voltage).

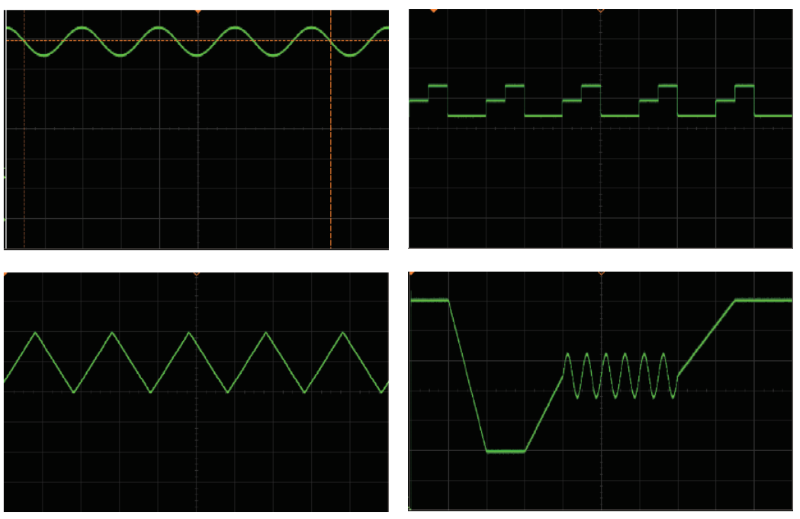

Powerful Arbitrary Waveform Generator

The GP series built-in multiple waveform generators allow users to easily realize the single or combined output of triangular / rectangular / trapezoidal / sine / step waveforms and apply these waveforms to an output voltage or output current. They provide users with powerful programmable test capability.

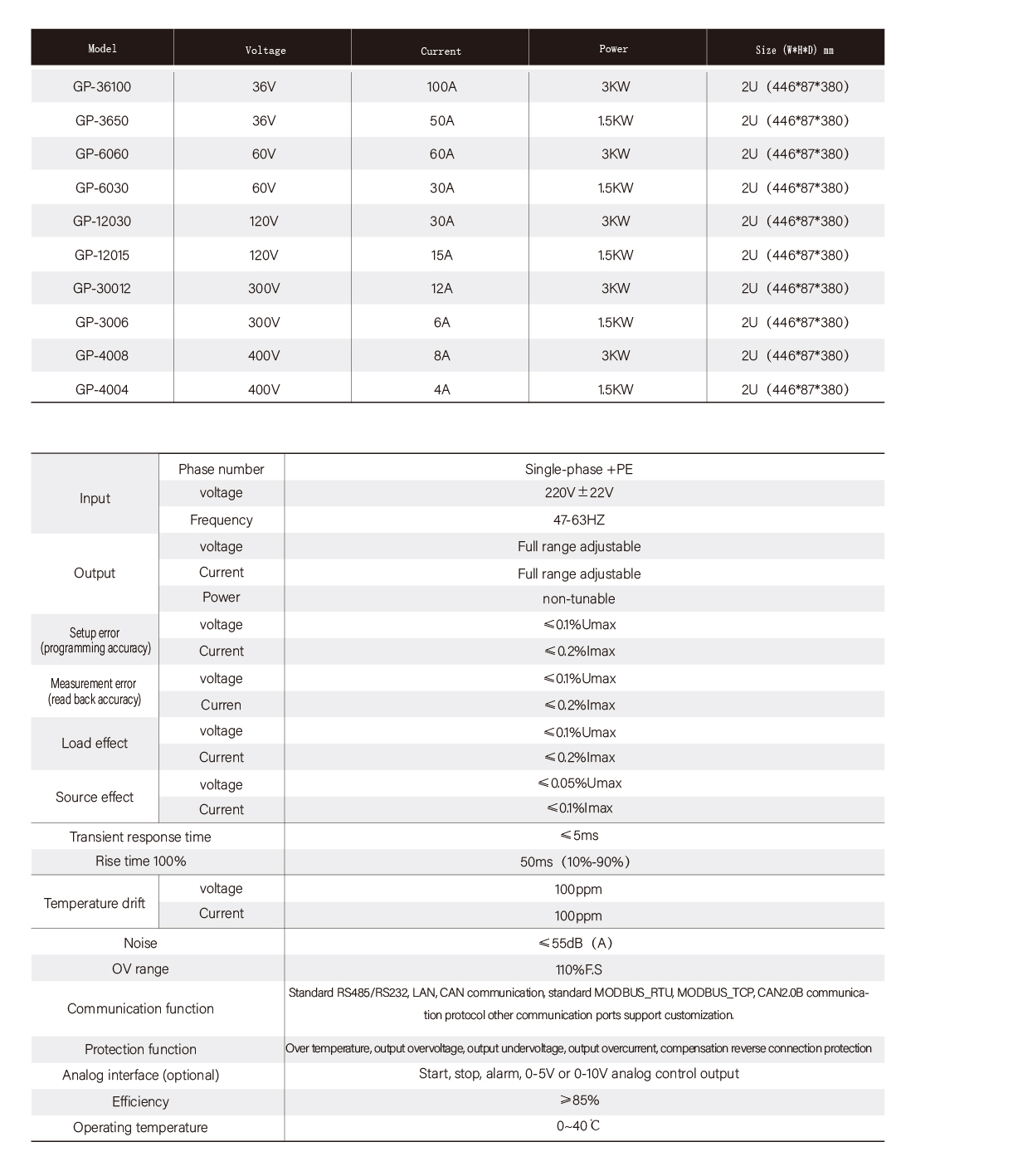

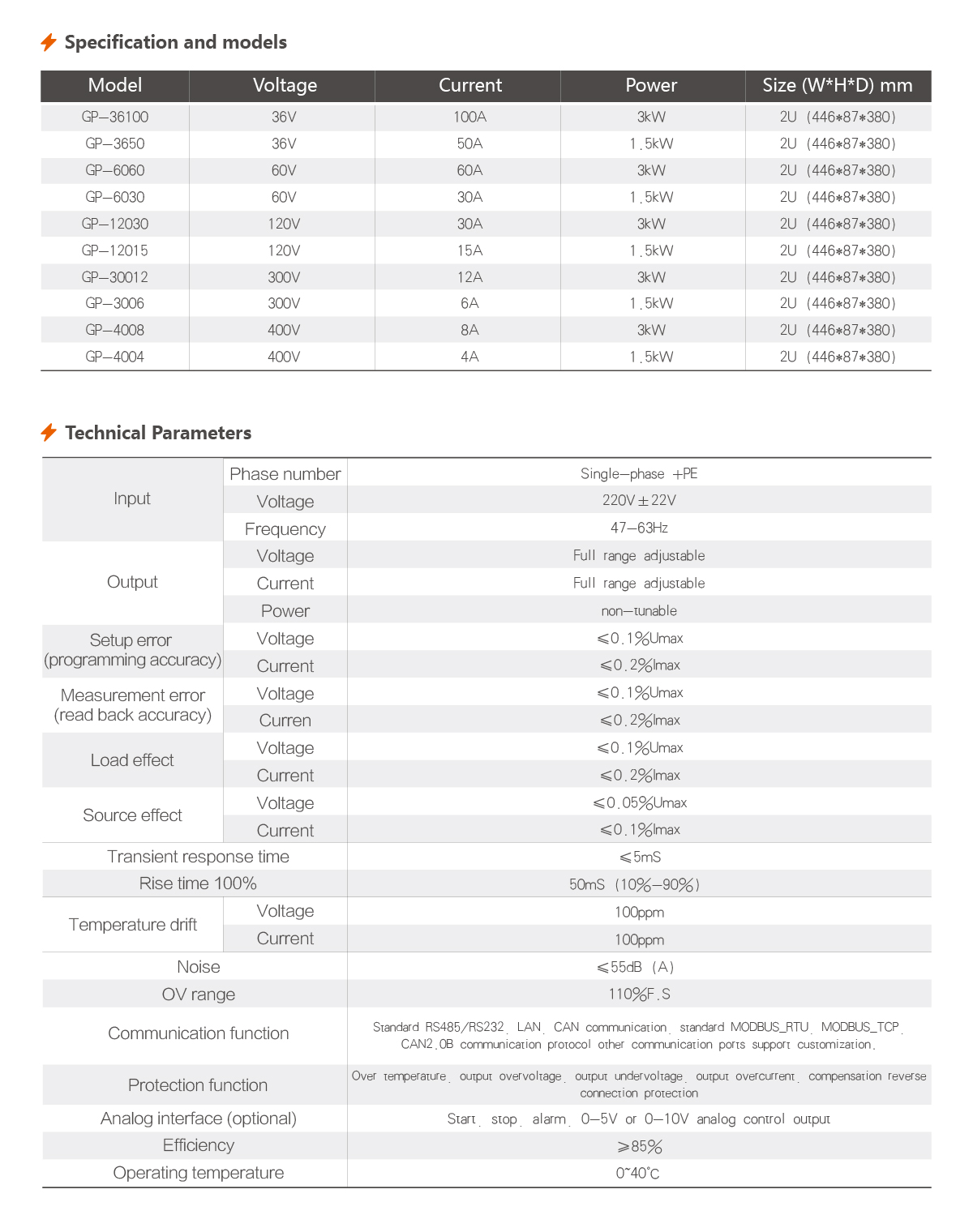

Technical parameter table
