DC Regulated Power Supply

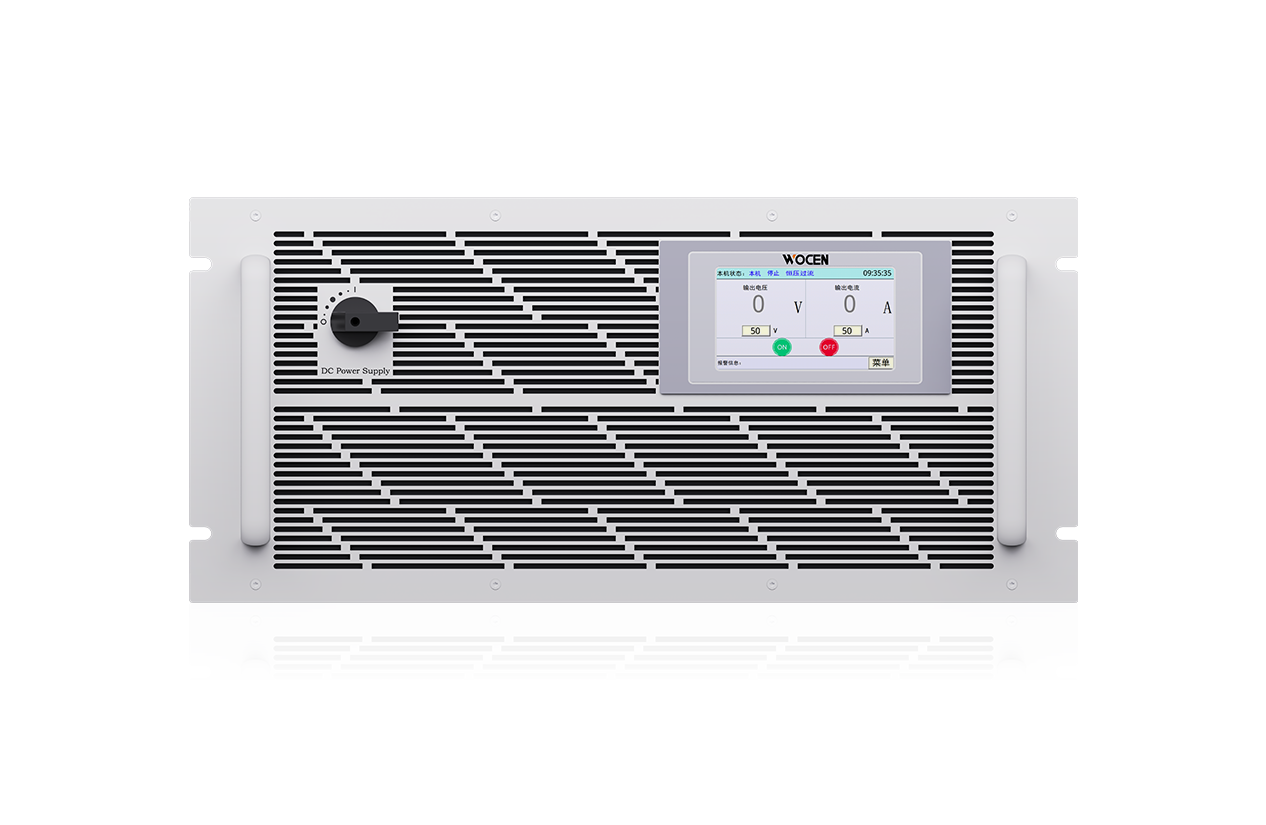

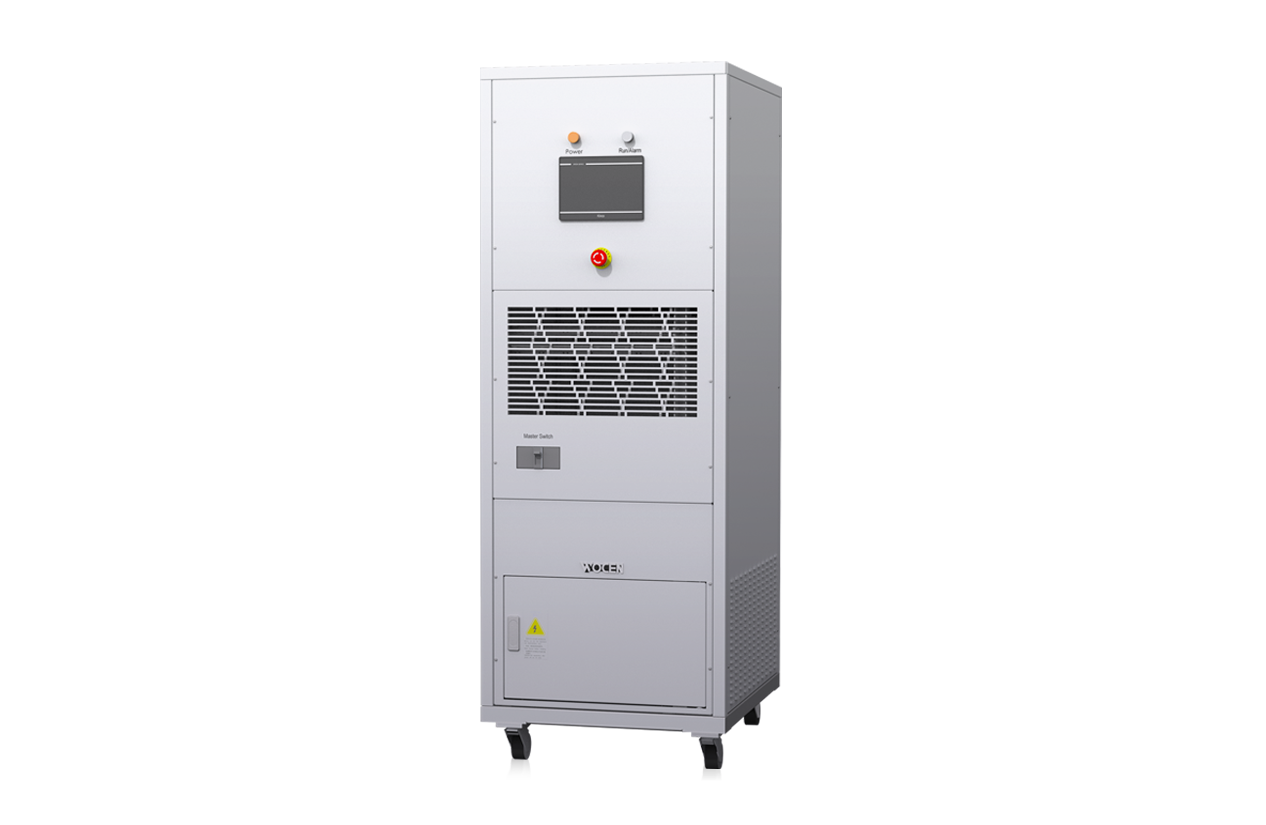

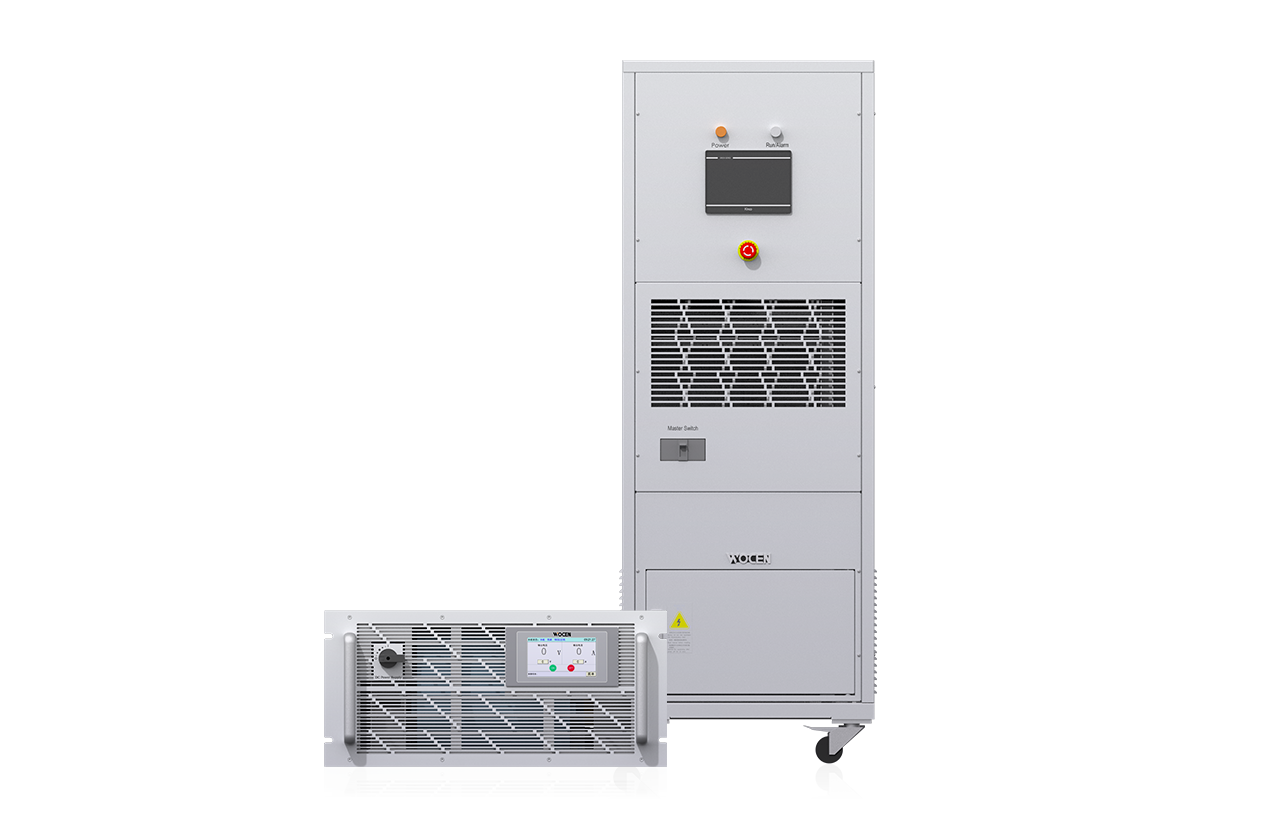

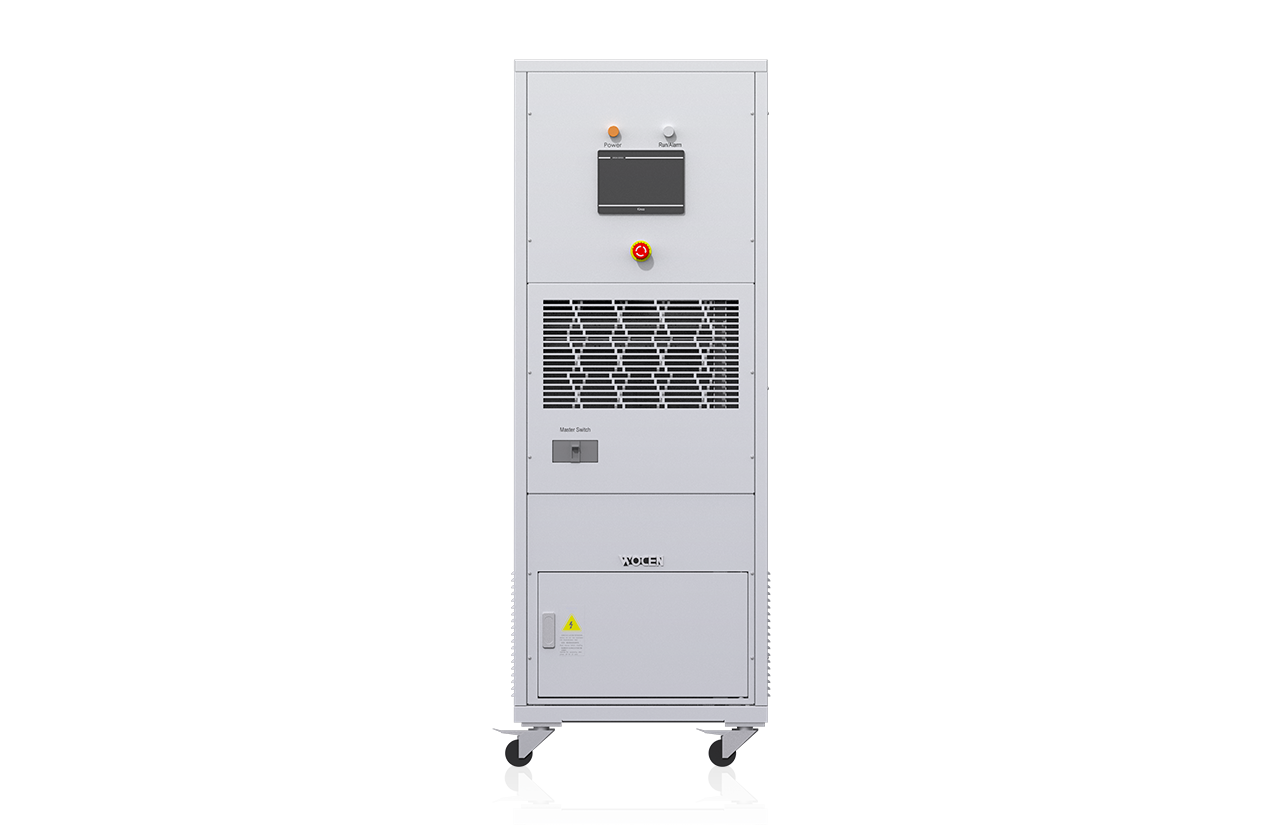

GP（10-400kW）Series

Voltage 60~800V, Current 30~600A , Power 10~300kW

The GP high-power series DC regulated power supply has a visual human-computer interaction interface, convenient operation, a beautiful interface,and a rich information display. lt can be applied to a wide range of industries, such as new energy motor control, power electronic components, colleges and universities and testing institutions, hydrogen production, sewage treatment, home appliances, and others.

Return to List

Application Area

Electric vehicle whole vehicle testing
Electric vehicle powertrain testing
Electric vehicle motor testing
Hydrogen production
Electroniccomponents
Sewage treatment
Testing institutions
Colleges and universities

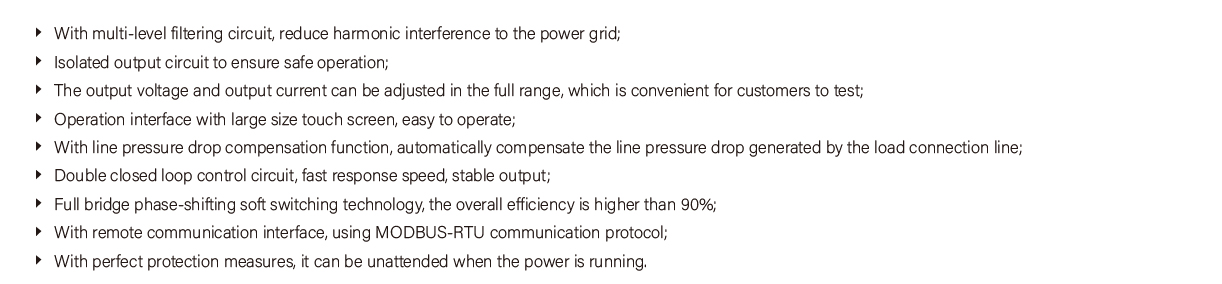

Product Features

It has a multi- stage filtering circuit to reduce harmonic interference to the electrical grid .
Isolated output circuit ensures safe operation.
The output voltage and current are fully adjustable, which is convenient for customer testing.

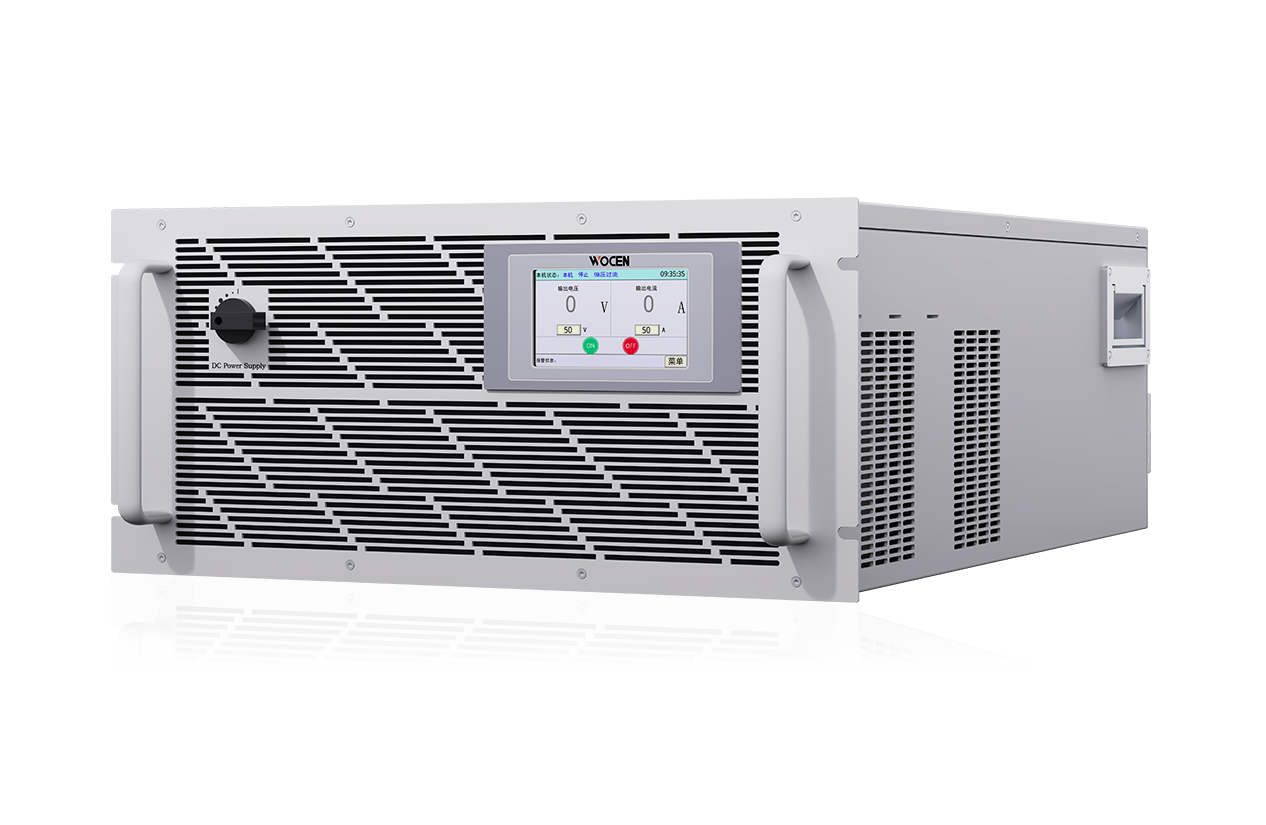

The operation interface uses a large touch screen for easy operation.
It has a line voltage drop compensation function, which automatically compensates for the line voltage drop
generated by the load connection line.
The double closed- loop control circuit has a fast response speed and stable output.
It adopts full- bridge phase- shift soft switching technology, and the overall efficiency is higher than 90%.

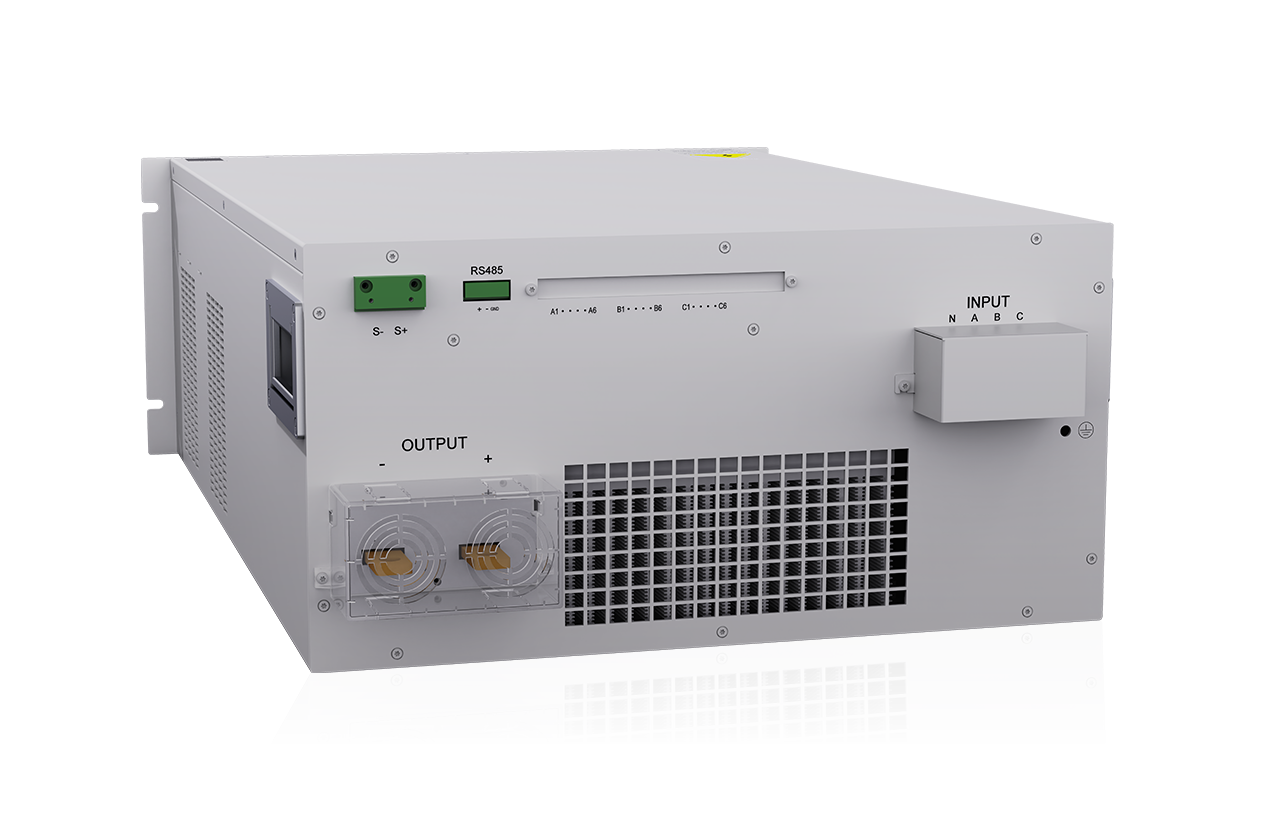

It has a remote communication interface and adopts MODBUS- RTU communication protocol.
It has perfect protection measures.

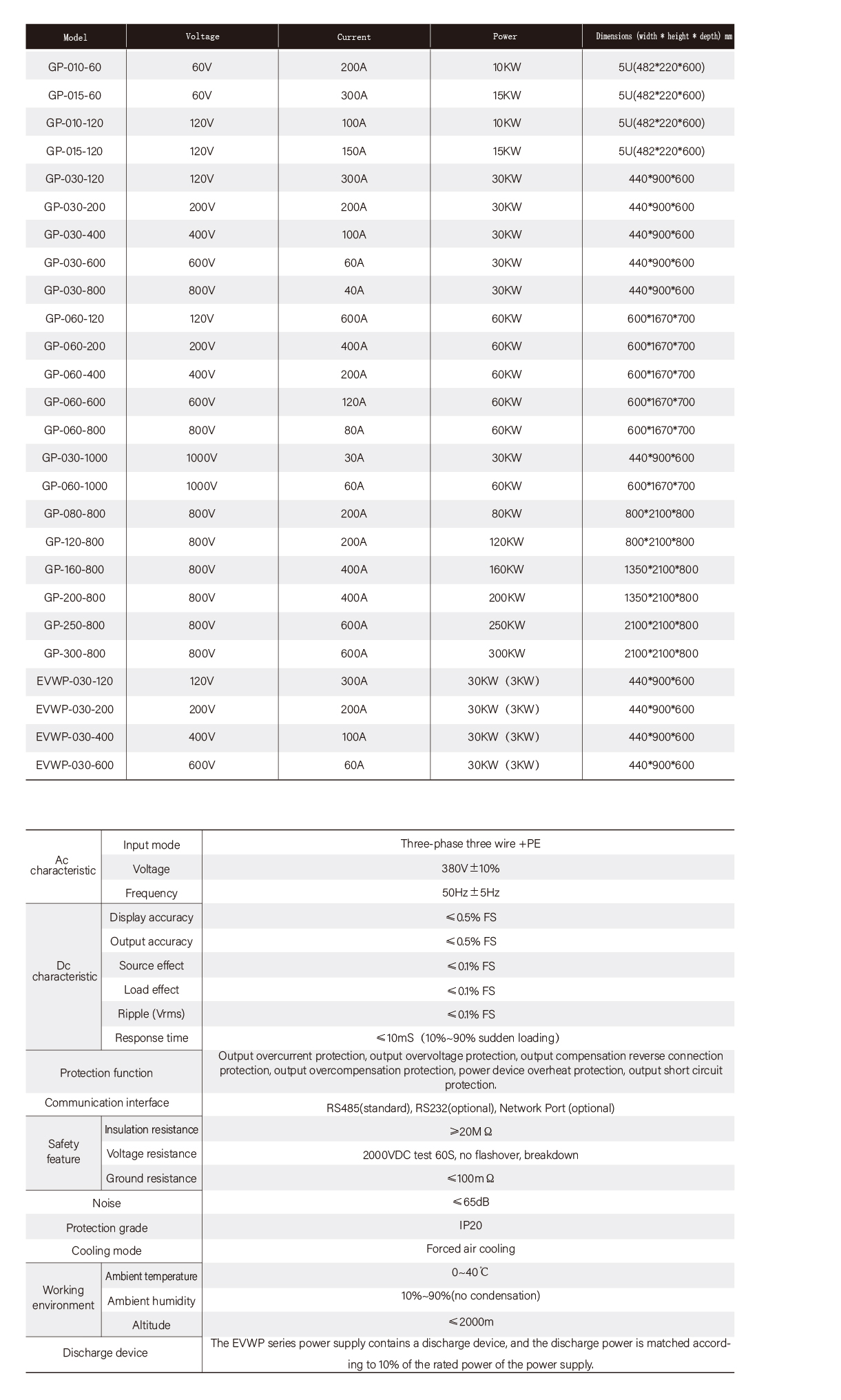

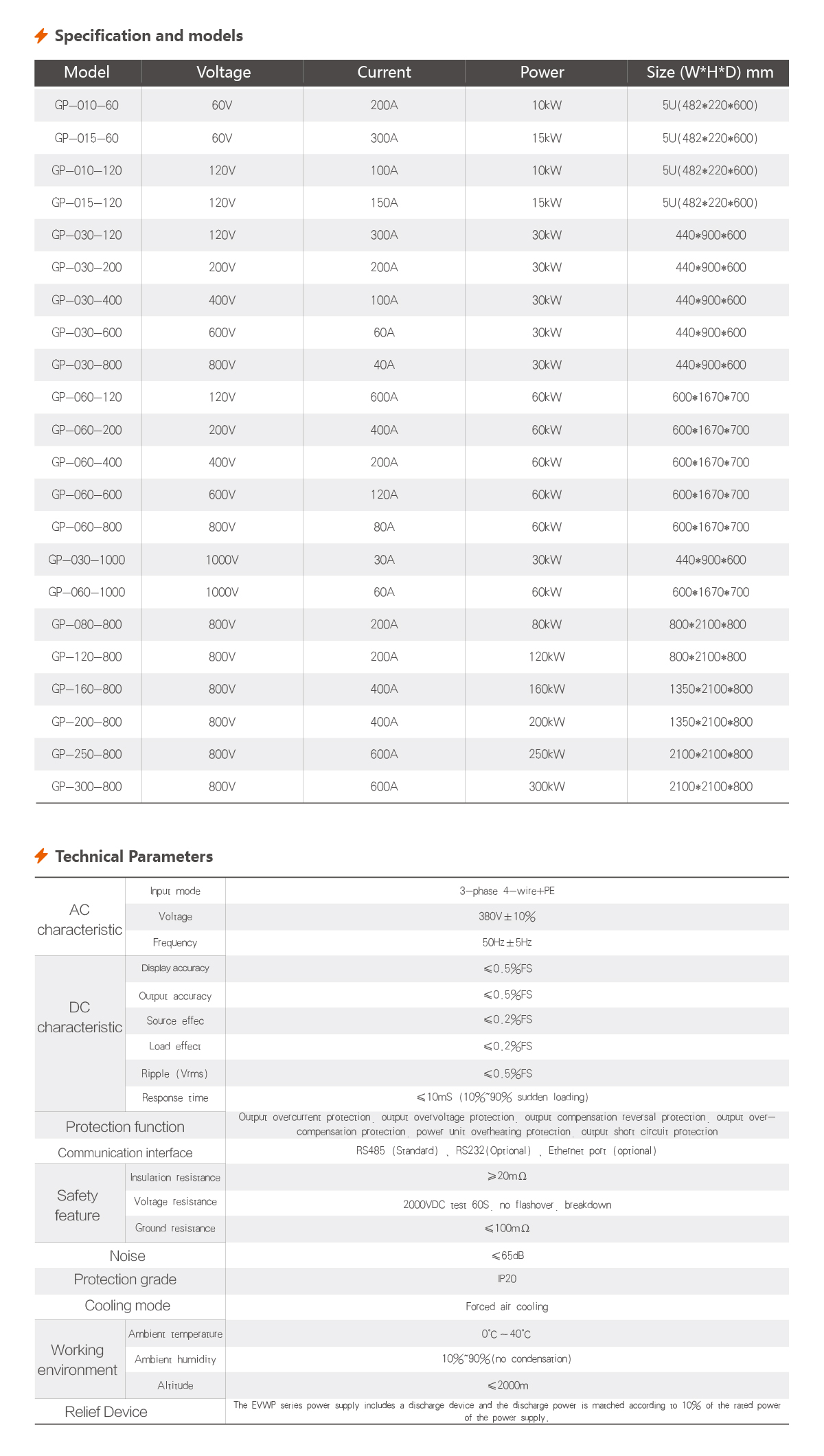

Technical parameter table
