Bidirectional DC Test Power Supply

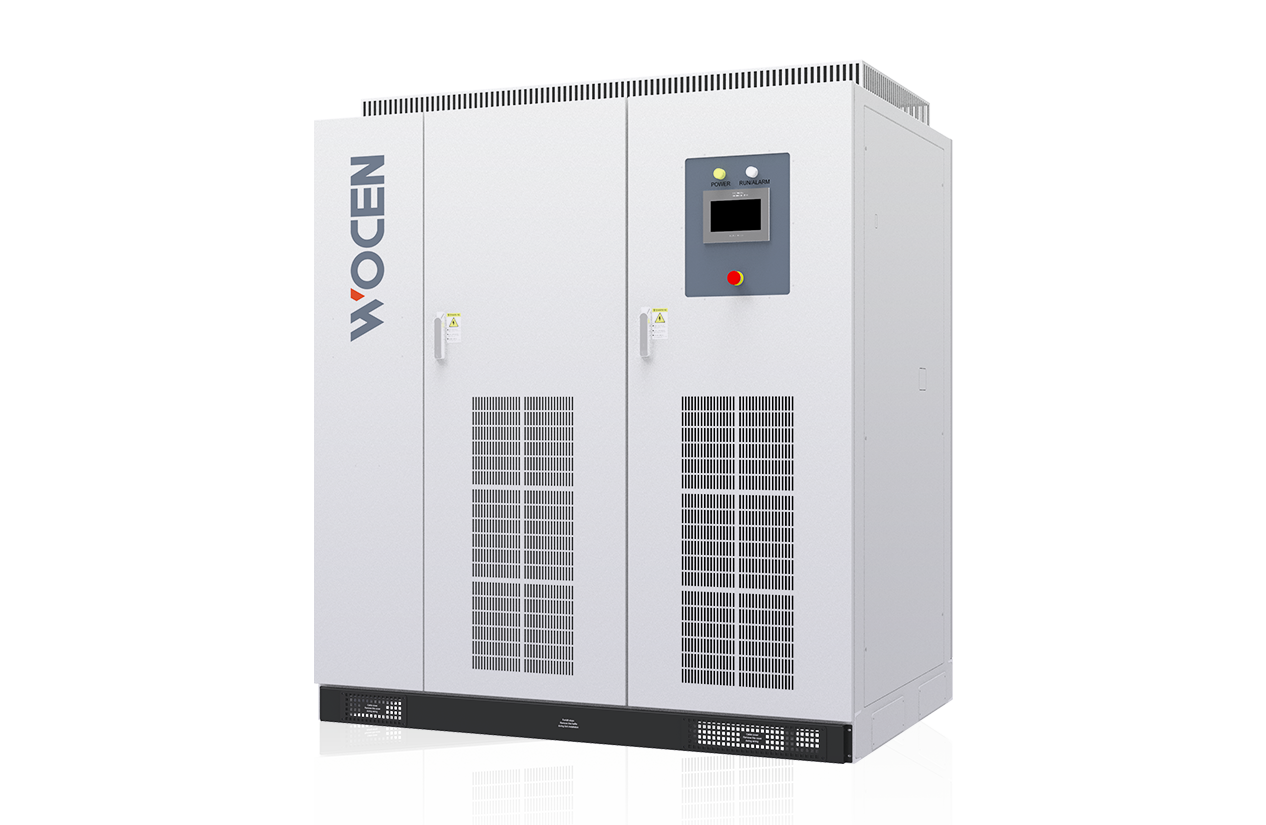

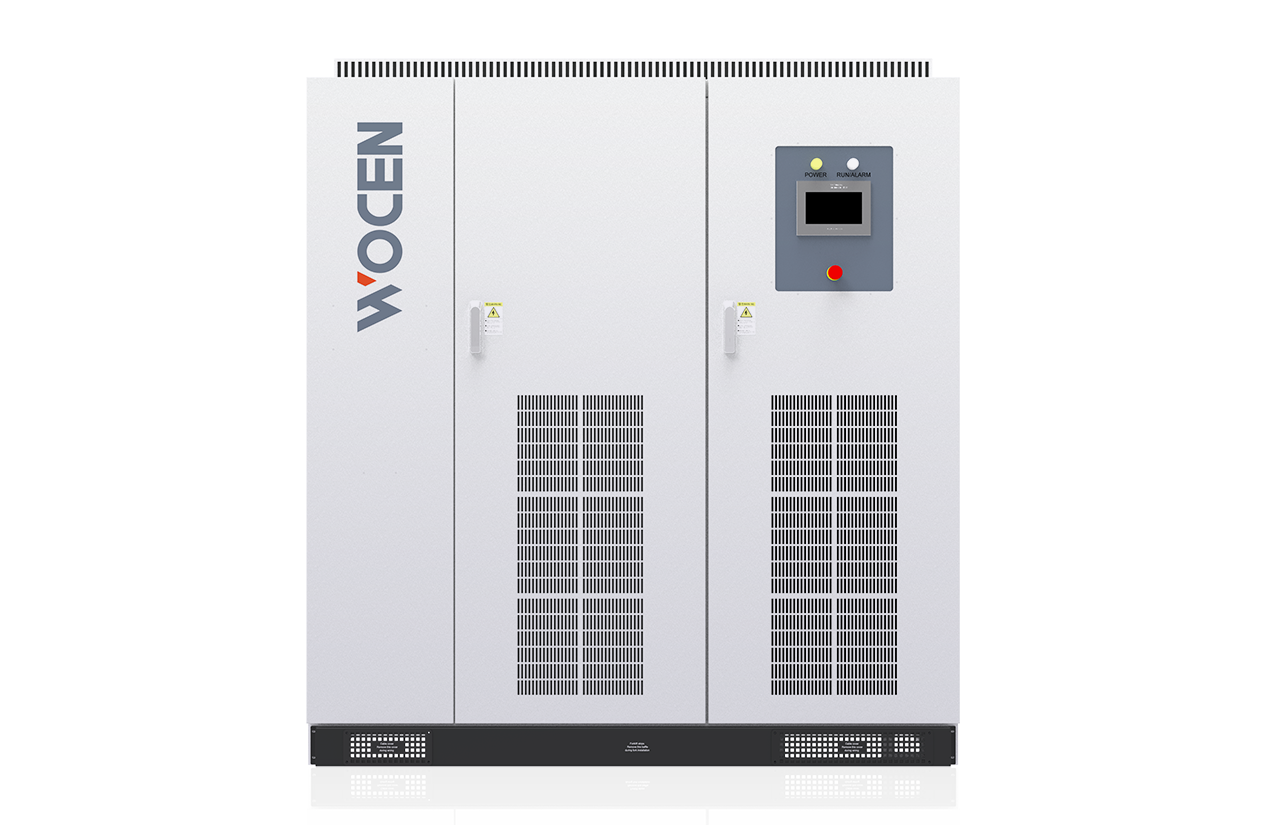

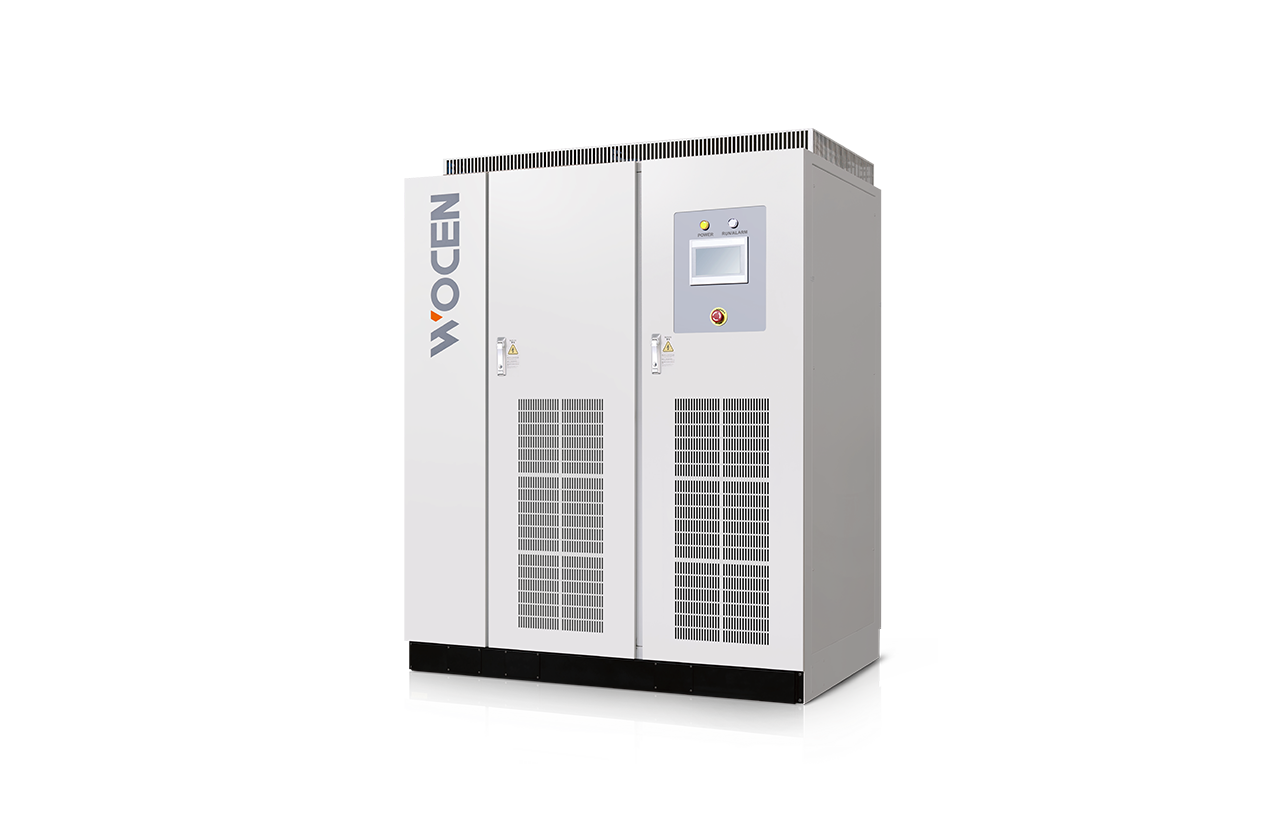

EVWB Series

Voltage 24~1200V, Current 0~1200A (peak 1560A) , Power 0~600kW (peak 780kW)

The EVWB series bi-directional dc test power supply is characterized by bi-directional flow, which can not only provide power for load, but also feedback power to the power grid without pollution, saving space and cost for users. It built- in five kinds of (Lithium iron phosphate/ternary lithium/lithium manganate/lithium cobaltate/lead- acid)battery models; support IV curve preview; support user- defined five battery models.support parallel operation function.

It applies to preliminary research and development, later type tests, reliability tests in electric motors, and factory tests of production line products.

Return to List

Product Features

The four- quadrant control technology is adopted to realize bidirectional energy flow in full power, stable and reliable operation, energy conservation, and high efficiency;
Various output modes of constant voltage, constant current, and constant power;
Transient response time ≤ 3ms;
High- speed digital control technology is adopted, with output accuracy up to 0.1%;
PWM rectification technology is adopted, power factor>0.99, input harmonic<3% and efficiency>93%;
With automatic voltage drop compensation function, automatically compensates for line voltage drop;
The 7- inch touch screen is used for convenient operation and display;
The output parameters and protection parameters are programmable and can be used for different types of equipment tests;
It is highly reliable by adopting internal components from international brands such as LEM and Infineon;
The modular design is adopted, and the later maintenance of the equipment is simple.

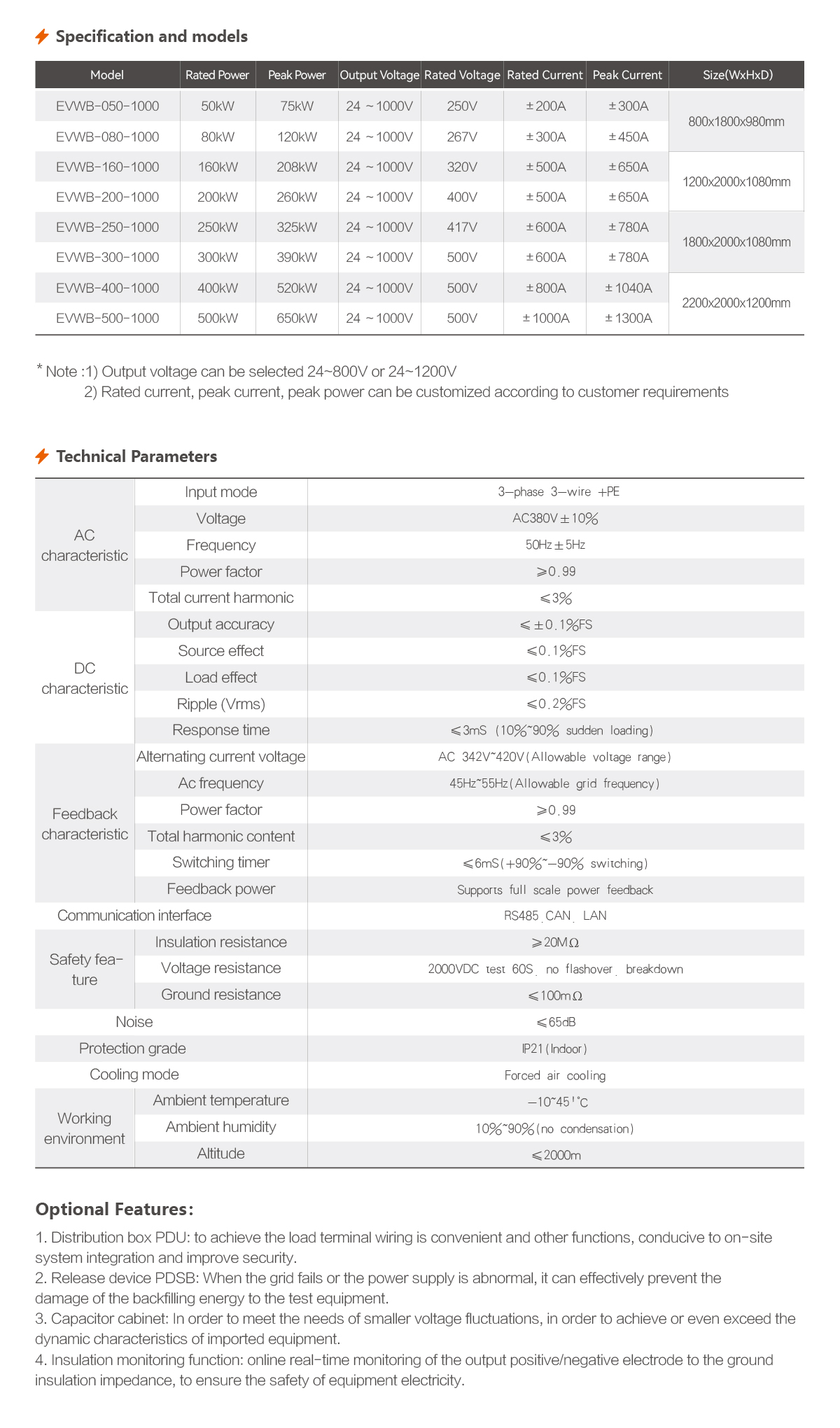

Technical parameter table
